Cylinder Valve

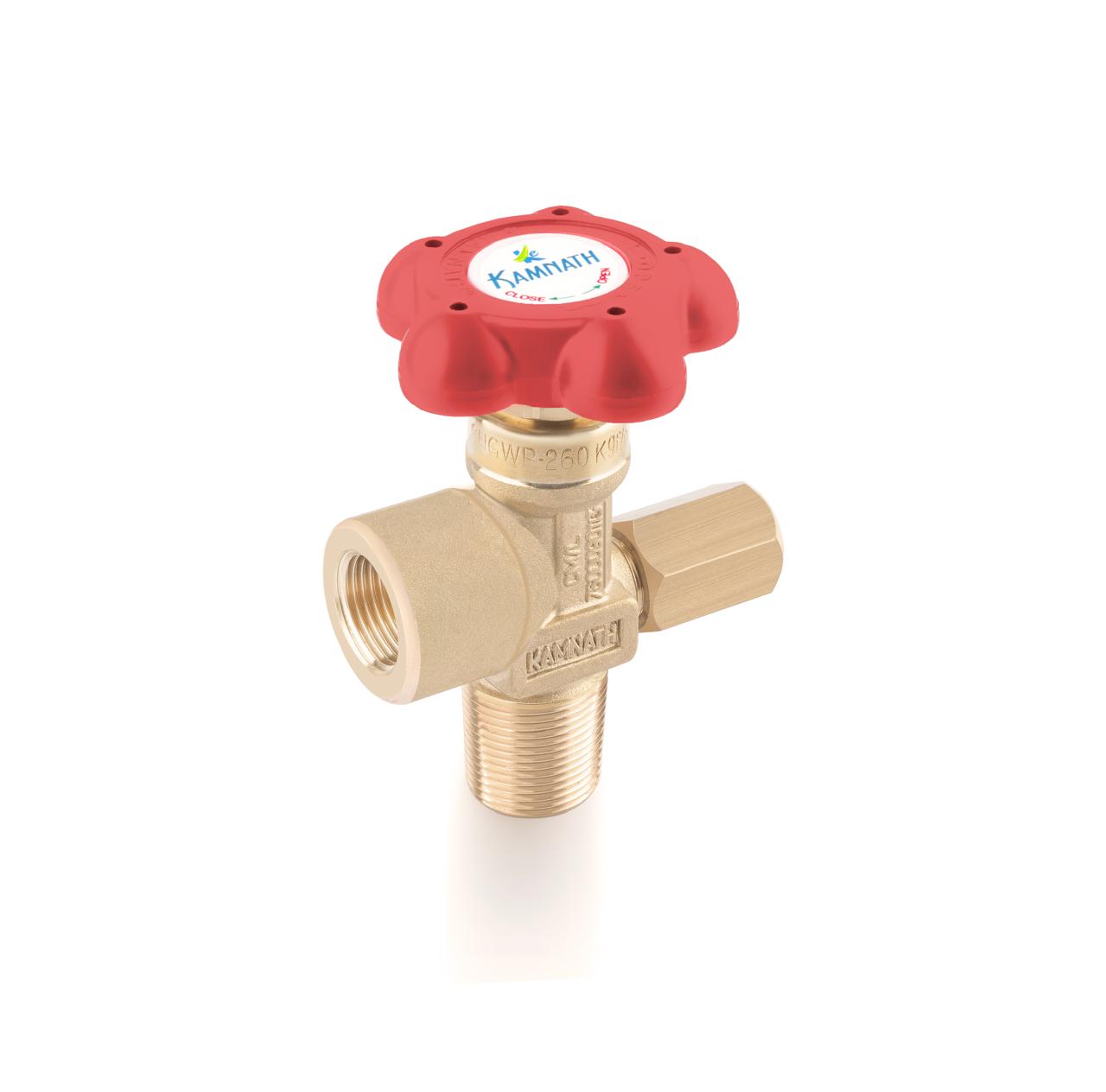

Wheel Operated Two Piece Spindle CNG Cylinder Valve
TECHNICAL SPECIFICATION : |
|
| Maximum Working Pressure (WP) | 261 Kgf / Cm² (For Cascade Application) |
| Inlet Thread Size | 25.4mm (1 Inch) 1:8 Taper (Type 4 Size 2) |
| Outlet Thread | W 21.8 X 1.814 RH (Outlet No 7 as per IS 3224) |
| Body material | High Tensile Brass With Manganese |
| Gland Nut | Brass (IS 319) |
| Spindle Material | Upper & Lower Spindle (Brass-IS 319) |
| Operating Mechanism | Wheel Operated Two Piece Spindle |
| Hand Wheel Material | ABS or Aluminium |
| Ref. Standard | BIS And PESO Approved As Per IS 3224 |
| Venting Plug | As Per Customer Requirement |
